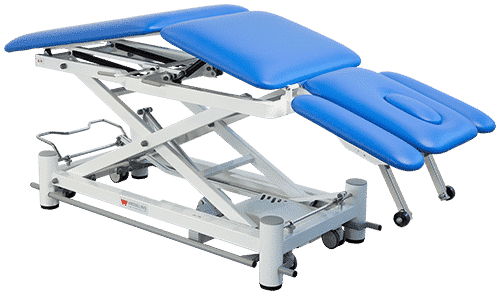

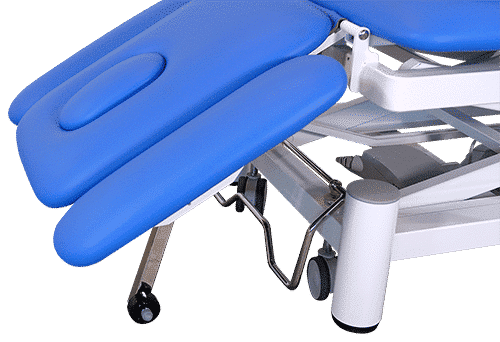

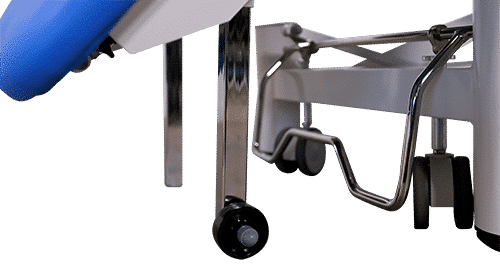

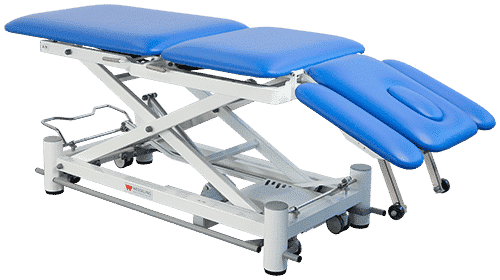

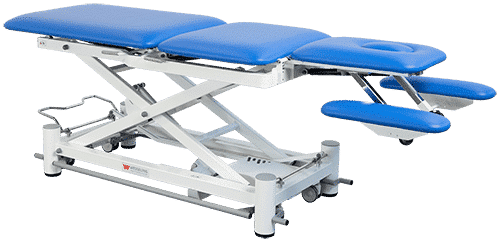

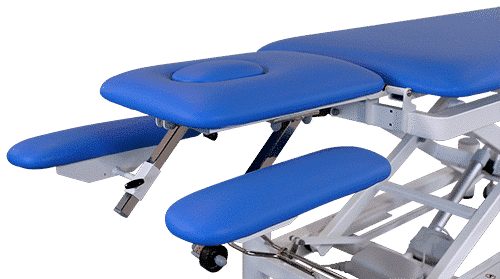

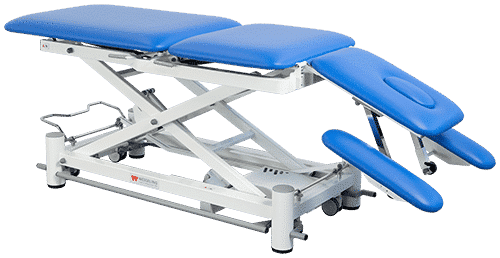

The 5-part model from this series combines all functions is one table. The BasiX 5 Flex is the most comprehensive model and is equipped with armrests and can be set in pli-mode and trendelenburg. The back section and the middle section are then provided with double gas spring operation and the headsection of a single gas spring. The armrests can be adjusted manually and can be turned next to the head section. By turning the armrests next to the middle part, the patient can place his or her arms next to the body.
By selecting the all-round switch, the height can also be adjusted under the head section. Due to the special mounting of the armrests, the space under the head section is kept completely free and work can be done sitting down.
Standard
Flex
Name
BasiX 5
BasiX 5 Flex
Product code
BAS5
BAS5T
Lifting capacity (kg)
200
Safe working load (kg)
400
Height Adjustment electric (cm)
45 – 115
Height Adjustment hydraulic (cm)
51 – 101
Duration height adjustment (sec)
40
Adjustable sections
4
5
Head section (in °)
-55 / +85
Middle section (in °)
–
0 / -25
Back section (in °)
0 / +85
-25 / +85
Armsupport (in cm)
0 / 27
Braking system
central
Castors (Ø in mm)
75
Length (cm)
203
Width (cm)
64
Thickness upholstery (mm)
60
