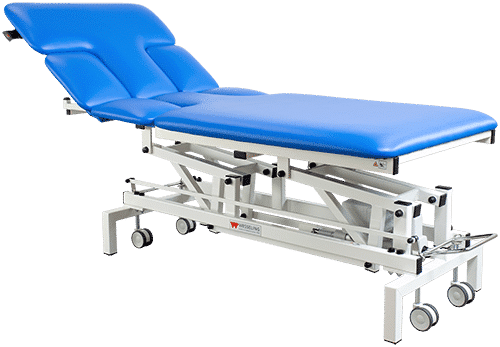

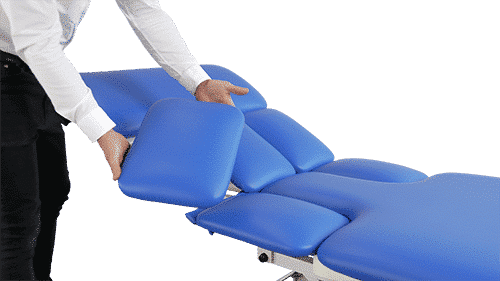

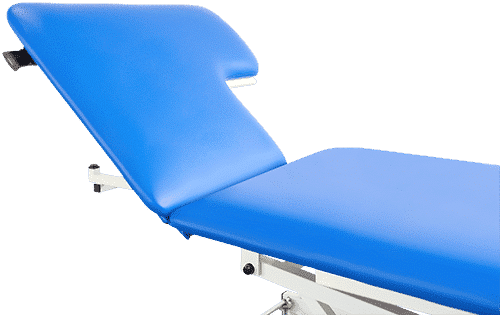

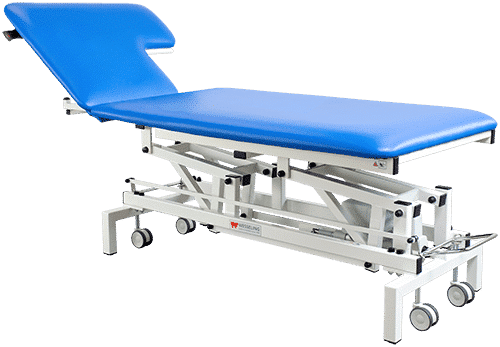

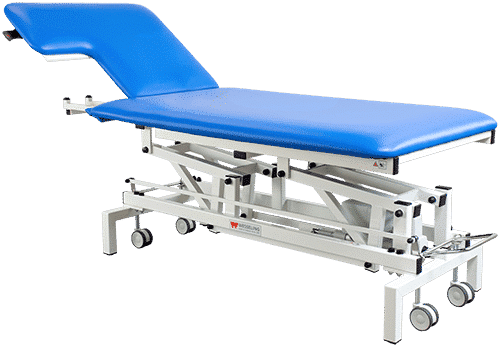

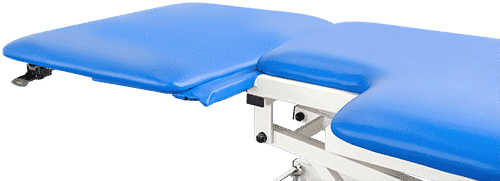

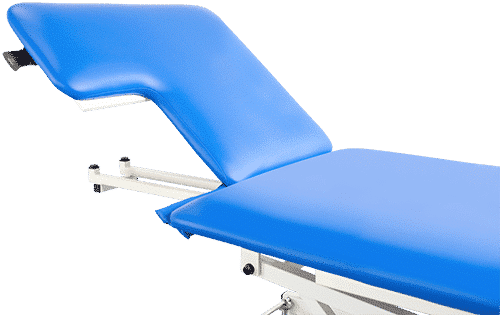

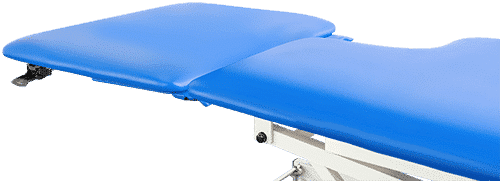

Due to the twin hinges and the wide lower-frame this couch is very rigid. The special head-section makes this table perfect for echocardiography. The cut out, with dimensions of 30x30cm, can be filled with the plug that offcourse will be upholstered in the same color of the table. The plug can be fixate on the back of the head-section, so it will be rigid during other treatments. There is plenty of room under the frame for the use of patient lifts. This table is available in a hydraulic or electric hight adjustable version.

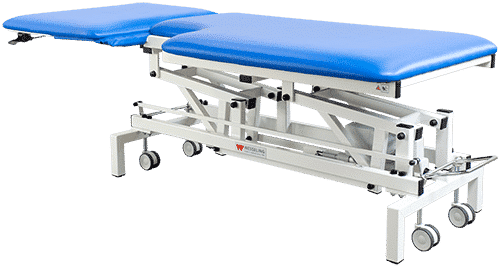

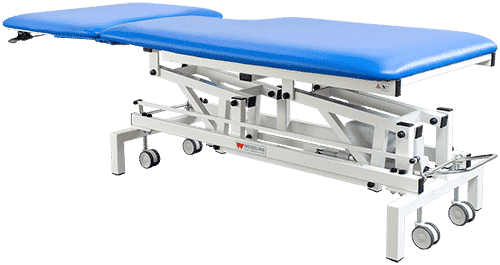

This version is electrically adjustable in height, also the table has wheels.
Colors There are more than 170 colors and 5 types of artificial leather available. For specifications and various properties please click here. In the configurator you can make a choice and then see an example.
If you have any questions regarding the colors, features or cleaning you can contact us at any time.
Standard
Name
Eco- Echo
Product code
ECOECHO
Lifting capacity (kg)
175
Safe working load (kg)
225
Height Adjustment electric(cm)
46-96
Height Adjustment hydraulic(cm)
Duration height adjustment (sec)
26
Adjustable sections
1
Head section (in °)
0-85
Braking system
central
Castors (Ø in mm)
75
Length (cm)
205
Width (cm)
80
Thickness upholstery (mm)
60
