Optimus 3E Tilt

The Optimus 3E Tilt is equipped with an extra motor under the middle-section. Due to this motor, it is possible to…
Read more
  • Wide range of treatment and examination tables
  • Service, parts and long-term support
  • Developed and manufactured in the Netherlands
  • Robust quality for intensive daily use
  • Sustainable materials and long service life
Ask a question

Adapter (set) Optimus
Adapter (set) Optimus
Infusion standard
Infusion standard
Armrest
Armrest
Stirrups (set)
Stirrups (set)
Set feet supports
Set feet supports
Neck Pillow large
Neck Pillow large
Paper roll holder Optimus, headsection
Paper roll holder Optimus, headsection
Paper roll holder Optimus, feet-section
Paper roll holder Optimus, feet-section
Special width (70cm)
Special width (70cm)
Special width Prax (80cm)
Special width Prax (80cm)
Description Galerij Specifications

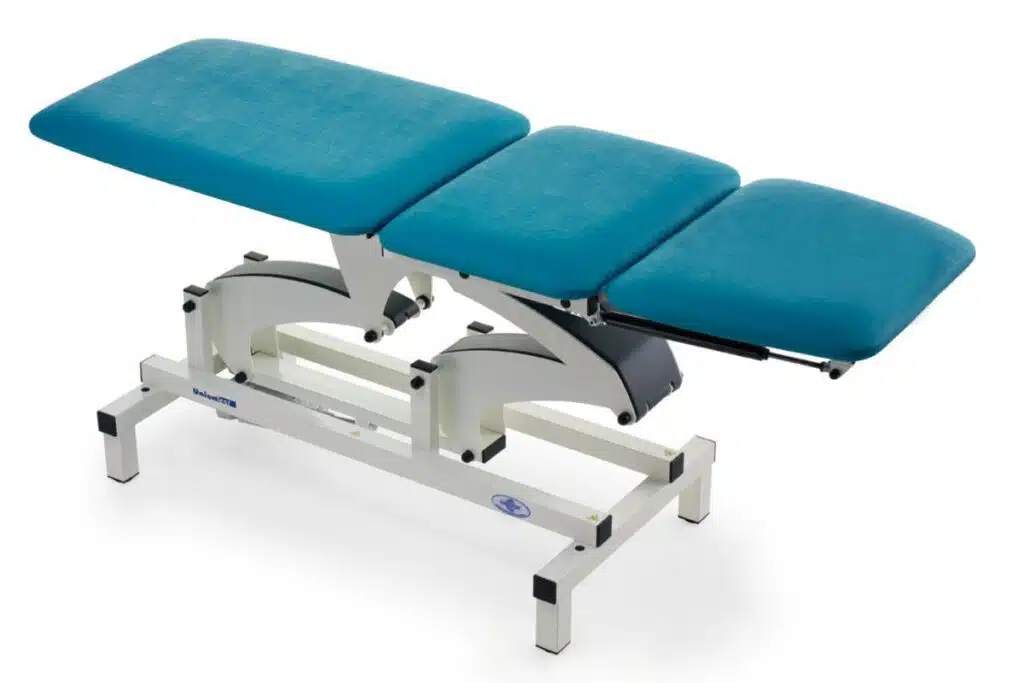

The Optimus 3E Tilt is equipped with an extra motor under the middle-section. Due to this motor, it is possible to have the patient in sitting-position tilting slightly backwards. In addition, this makes it possible to position the table in Trendelenburg and Anti-Trendelenburg. The head-section and back-sectionare are both adjustable by means of a gasspring.



.



Standard

Optional

Name

Optimus 3E Tilt



Product code

OPT3ET



Lifting capacity (kg)

175



Safe working load (kg)

200



Height Adjustment electric(cm)

65-115



Duration height adjustment (sec)

33



Adjustable sections

3

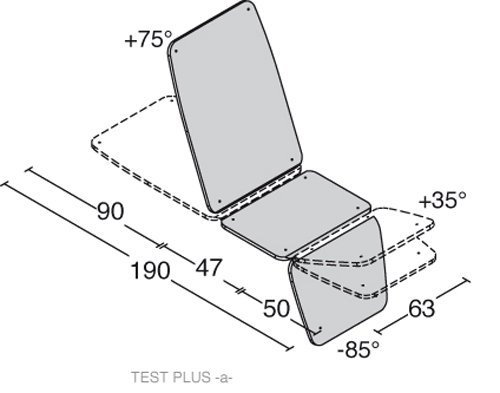

Head section (in °)

-85 to +35

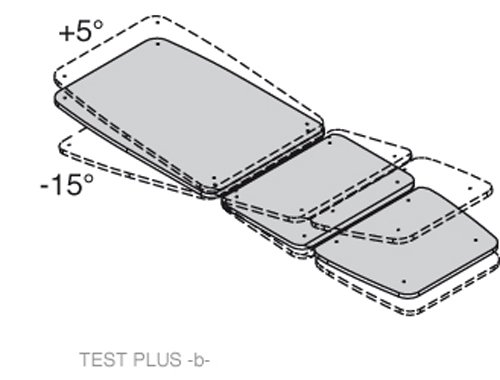

Middle section (in °)

-15 to +5



Back-/body section (in °)

0 to +75



Braking system

central



Castors (Ø in mm)

75

100

Length (cm)

190



Width (cm)

64

70

Thickness upholstery (mm)

50

70
